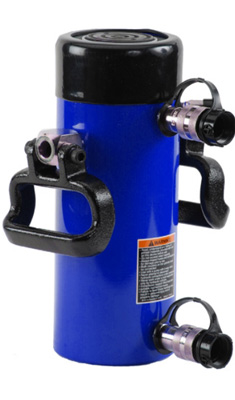

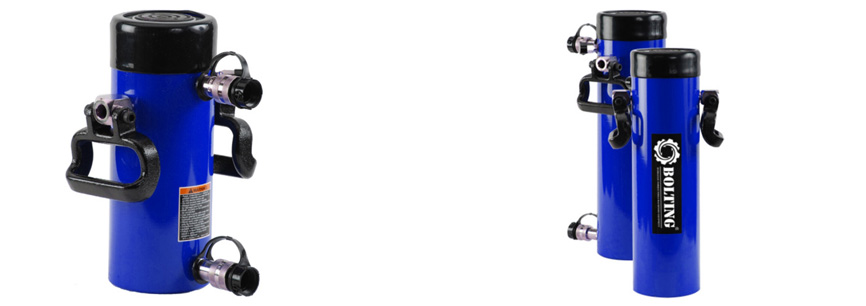

RR系列雙作用油缸能在惡劣的環境下勝任工作，適合長周期的工業應用場合；
|
型號 |
能力 |
使用油量 |
行程 |
本高 |
外徑 |
內徑 |
主軸直徑 |
油缸外牙 |
外牙長度 |
重量 |
|
|
推 |
拉 |
||||||||||
|
RR-1010 |
10 |
3.3 |
368 |
254 |
409 |
73 |
42.9 |
34.9 |
2-1/4″ |
26 |
12 |
|
RR-1012 |
442 |
305 |
457 |
73 |
42.9 |
34.9 |
2-1/4″ |
26 |
14 |
||
|
RR-308 |
30 |
5.3 |
879 |
209 |
387 |
101 |
73.2 |
54.1 |
3-5/16″ |
49 |
18 |
|
RR-3014 |
1549 |
368 |
549 |
101 |
73.2 |
54.1 |
3-5/16″ |
49 |
29 |
||
|
RR-506 |
50 |
10 |
1111 |
156 |
331 |
127 |
95.2 |
79.5 |
5″ |
44 |
30 |
|
RR-5013 |
2378 |
334 |
509 |
127 |
95.2 |
79.5 |
5″ |
44 |
52 |
||
|
RR-5020 |
3638 |
511 |
733 |
127 |
95.2 |
79.5 |
5″ |
44 |
68 |
||
|
RR-756 |
75 |
16 |
1601 |
156 |
347 |
146 |
114.3 |
95.2 |
5-3/4″ |
38 |
41 |
|
RR-7513 |
3417 |
333 |
525 |
146 |
114.3 |
95.2 |
5-3/4″ |
38 |
68 |
||
|
RR-1006 |
100 |
43 |
2238 |
168 |
357 |
177 |
130.3 |
95.2 |
6-7/8″ |
50 |
61 |
|
RR-10013 |
4439 |
333 |
524 |
177 |
130.3 |
95.2 |
6-7/8″ |
50 |
93 |
||
|
RR-10018 |
6132 |
460 |
687 |
177 |
130.3 |
95.2 |
6-7/8″ |
50 |
117 |
||
|
RR-1502 |
150 |
67 |
1129 |
57 |
196 |
203 |
158.8 |
114.3 |
8″ |
55 |
49 |
|
RR-1506 |
3090 |
156 |
385 |
203 |
158.8 |
114.3 |
8″ |
55 |
93 |
||
|
RR-15013 |
6597 |
333 |
582 |
203 |
158.8 |
114.3 |
8″ |
55 |
124 |
||
|
RR-15032 |
16145 |
815 |
1116 |
203 |
158.8 |
114.3 |
8″ |
55 |
238 |
||
|
RR-2006 |
200 |
102 |
4332 |
152 |
430 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
147 |
|
RR-20013 |
9405 |
330 |
608 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
199 |
||
|
RR-20018 |
13025 |
457 |
765 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
204 |
||
|
RR-20024 |
17385 |
610 |
917 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
279 |
||
|
RR-20036 |
26049 |
914 |
1222 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
383 |
||
|
RR-20048 |
34741 |
1219 |
1527 |
247 |
190.5 |
133.4 |
9-3/4″ |
54 |
483 |
||
|
RR-3006 |
300 |
170 |
6997 |
153 |
485 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
200 |
|
RR-30012 |
13947 |
305 |
638 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
312 |
||
|
RR-30018 |
20889 |
457 |
790 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
385 |
||
|
RR-30024 |
27850 |
609 |
943 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
469 |
||
|
RR-30036 |
41843 |
915 |
1247 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
628 |
||
|
RR-30048 |
55745 |
1219 |
1552 |
311 |
241.3 |
165.1 |
12-1/4″ |
58 |
780 |
||
|
RR-4006 |
400 |
230 |
9319 |
152 |
538 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
303 |
|
RR-40012 |
18700 |
305 |
690 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
399 |
||
|
RR-40018 |
28018 |
457 |
843 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
453 |
||
|
RR-40024 |
37400 |
610 |
995 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
597 |
||
|
RR-40036 |
56037 |
914 |
1300 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
792 |
||
|
RR-40048 |
74737 |
1219 |
1605 |
358 |
279.4 |
190.5 |
14-1/8″ |
65 |
980 |
||
|
RR-5006 |
500 |
284 |
11164 |
153 |
577 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
432 |
|
RR-50012 |
22256 |
305 |
730 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
589 |
||
|
RR-50018 |
33347 |
457 |
882 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
680 |
||
|
RR-50024 |
44440 |
609 |
1035 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
816 |
||
|
RR-50036 |
66768 |
915 |
1339 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
1002 |
||
|
RR-50048 |
88951 |
1219 |
1644 |
397 |
304.8 |
203.2 |
15-5/8″ |
79 |
1224 |
||
|
配件 |
平面鞍座 |
溝槽式鞍座 |
傾斜式鞍座 |
底座 |
安裝塊 |
底座式吊耳 |
柱塞式吊環 |
|
承載能力 |
|
|
|
|
|
|
|
|
5 (45) |
A-53 2 |
A-53G 2 |
– |
– |
AW-51, AW-53 2 |
REB-5 2 |
REP-5 2 |
|
10 (101) |
A-12, A-102F 3 |
A-102G 3 |
CAT-103) |
JBI-10 |
RB-10, AW-102 |
REB-10 |
REP-10 3 |
|
15 (142) |
– |
A-152G |
CAT-10 |
– |
RB-15 |
REB-15 |
REP-15 |
|
25 (232) |
A-29 |
A-252G |
CAT-50 |
JBI-25 |
RB-25 |
REB-25 |
REP-25 |
|
30 (295) |
A-29 |
A-252G |
CAT-50 |
– |
RB-25 |
– |
– |
|
50 (498) |
– |
– |
CAT-100 |
JBI-50 |
– |
– |
– |
|
75 (718) |
– |
– |
CAT-100 |
– |
– |
– |
– |
|
95 (933) |
– |
– |
CAT-100 |
– |
– |
– |
– |
